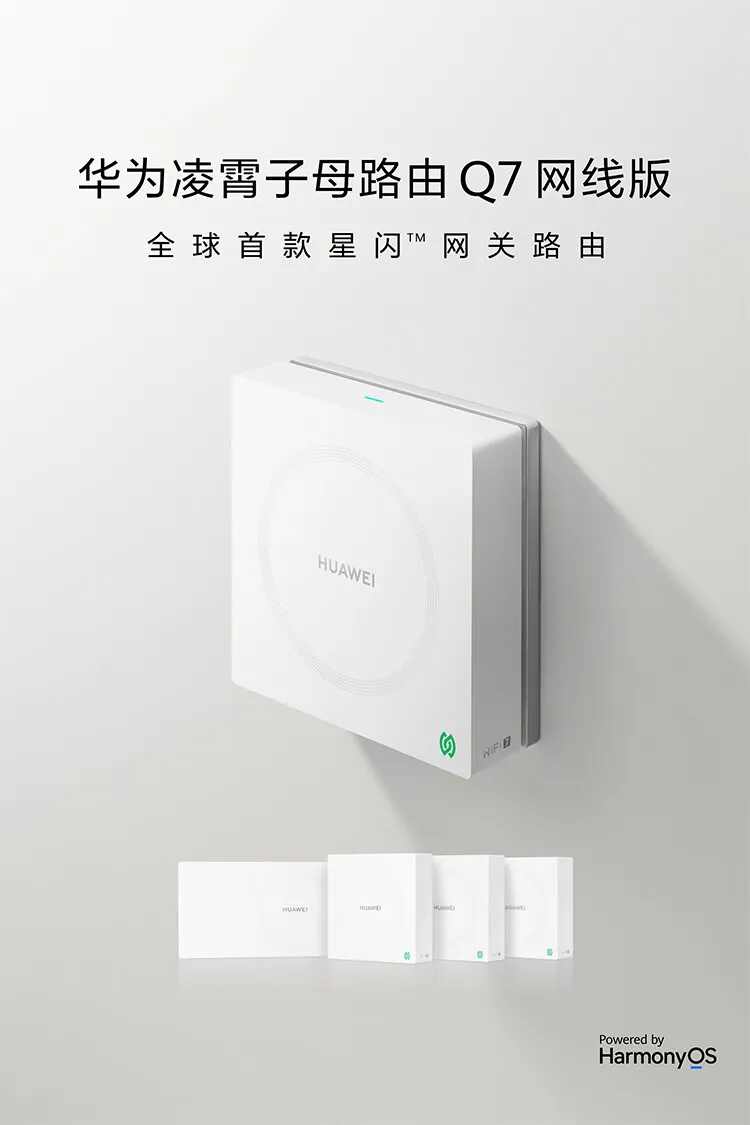

HUAWEI Lingxiao Q7 Ethernet Mesh Router 1 Main+3 Satellites (120-150 m²) White
Wi-Fi 7 | PoE Satellites | 8-Port Main Router
🎁 1 Plug Adapter(matched to your country's sockets)
Price
$449
$499
Save 10%
Color: White
Storage: 1 Main+3 Satellites (120-150 m²)
Qty:
✅ 100% Brand New
📦 Professional Packaging
🚀 Fast Worldwide Shipping
🛡️ 100% Authentic Guarantee
Payments:
Ship via:
Express shipping · 5–7 business days
Key Features
Wi-Fi 7 whole-home mesh with 3570 Mbps total theoretical speed
Satellites are powered over the Ethernet cable — no power socket needed at each one
Palm-sized 159g satellites mount flat on a wall with the included adhesive pads
Main router doubles as a switch: 2.5G WAN plus six 2.5G LAN ports
NearLink gateway, visual diagnostics and mobile game acceleration
Three kit sizes covering 120 m² up to 250 m²
Why buy from Liaow?
Trusted by customers worldwide since 2008.
We provide professional packaging and top-notch service for every flagship device.
Specifications
Key Features of HUAWEI Lingxiao Q7 Ethernet Mesh Router
Name
HUAWEI Lingxiao Q7 Ethernet Mesh Router
Brand
Huawei
Kits
1 Main + 3 Satellites — covers 120–150 m² (3–4 rooms)
1 Main + 4 Satellites — covers 150–200 m² (4–5 rooms)
1 Main + 5 Satellites — covers 200–250 m² (5+ rooms)
Wi-Fi Standard
Wi-Fi 7 (IEEE 802.11be)
5GHz: 802.11be/ax/ac/n/a, 2×2 MIMO
2.4GHz: 802.11be/ax/n/g/b, 2×2 MIMO
Wireless Speed
2.4GHz: 688 Mbps (theoretical)
5GHz: 2882 Mbps (theoretical)
Total: 3570 Mbps (theoretical)
Frequency Bands
2.4GHz & 5GHz with dual-band steering
2.4GHz: 2.4–2.483 GHz
5GHz: 5.15–5.35 GHz, 5.725–5.85 GHz
Ethernet Ports
Main router: 1 × 2.5G WAN + 6 × 2.5G LAN + 1 × 1G LAN (LAN7 shared with IPTV)
Satellite: 1 × 2.5G WAN + 1 × 2.5G LAN
802.3, 802.3u, 802.3ab, 802.3bz
Power over Ethernet
Satellites are powered over the Ethernet cable (48V DC) — no wall socket needed at each satellite
Memory
256MB RAM + 128MB ROM per unit
Antenna
Satellite: 2 built-in omnidirectional antennas
Features
NearLink gateway
Lingxi Dual Wi-Fi, dual-band seamless roaming, 802.11kvr
Three Wi-Fi modes: wall-penetration, standard, sleep
Visual smart diagnostics
Parental controls, mobile game acceleration
Per-device speed limiting QoS, smart acceleration
Guest Wi-Fi, Wi-Fi timer, remote control
Wi-Fi brute-force attack prevention
HarmonyOS Connect, dedicated IoT channel
PPPoE / DHCP / static IP
Buttons & Indicators
Main router: reset pinhole (hold 2 seconds)
Satellite: WPS / Wi-Fi button, hold 10 seconds to reset
Status LED (red / ice blue)
Power
Main router: 52.5V DC, 1.75A; input 200–240V AC, 50–60Hz
Satellite: 48V DC, 0.38A (over Ethernet)
Dimensions
Main router: 193 × 80 × 33 mm, approx. 335g
Satellite: 86.5 × 86 × 30 mm, approx. 159g
Colors
White
From The Manufacturer
In The Box
1 Main + 3 Satellites:
- Main Router × 1
- Satellite Router × 3
- Power Adapter × 1
- Power Cable × 1
- Ethernet Cable × 1
- Adhesive Pads × 2
- User Manual & Warranty Card × 1
1 Main + 4 Satellites:
- Main Router × 1
- Satellite Router × 4
- Power Adapter × 1
- Power Cable × 1
- Ethernet Cable × 1
- Adhesive Pads × 2
- User Manual & Warranty Card × 1
1 Main + 5 Satellites:
- Main Router × 1
- Satellite Router × 5
- Power Adapter × 1
- Power Cable × 1
- Ethernet Cable × 1
- Adhesive Pads × 2
- User Manual & Warranty Card × 1
